XP/W2k3 x86 on Modern Hardware

[Thor55]

hi

infuscomus

However, it doesn't make sense to try the usb3.0 driver so many times to turn on the keyboard and mouse, in addition to acpi I tried different ones in the integrator, acpi and usb 3.0 but so far without success .. what should I do differently because it's pointless

[infuscomus]

@Thor55

USB3.0? I said to test with ACPI patch only since we're not sure which driver is failing.

If you do not integrate any patches - do you get A5 BSOD?

[Thor55]

20 minutes ago, infuscomus said:

@Thor55

OK, try - acpi 5048 - 2020.10.24 - daniel_k, diderius6 - see if that makes a difference.

this date is not in the folder in the new intergrator acpi 5048 - 2020.10.24 - daniel_k, diderius6 please send me



i will try everything but i have a lot of time every day, please send this driver because it is not in the folder

Edited December 22, 2021 by Thor55

[Thor55]

1 hour ago, infuscomus said:

@Thor55

OK, try - acpi 5048 - 2020.10.24 - daniel_k, diderius6 - see if that makes a difference.

I tried, as you said, but without success, a message that is ACPI not fully compliant with the file acpi ..acpi.sys, larger than 200 kb, does not go immediately, then passes bsod 1 second

Edited December 22, 2021 by Thor55

[Thor55]

correct is  acpi.sys 192 kb

Edited December 22, 2021 by Thor55

[infuscomus]

@Thor55

Using 192kb acpi.sys do you still get 0A BSOD?

[infuscomus]

@Dietmar

For XP textmode setup can you check if changing these in txtsetup.sif allows you to connect windbg during text mode setup?

	Modifying txtsetup.sif
	If you are developing for XP or 2000, or want some other debug configuration than the default for 2003, you are going to need to change the file txtsetup.sif. The file contains the following line:

	OsLoadOptions = "/fastdetect /noguiboot /nodebug"

	To invoke the debugger, modify the above line to remove the
	/nodebug and add the desired debug switches, for example:

	OsLoadOptions = "/fastdetect /noguiboot /baudrate=115200 /break"

	The above will run the debugger off COM1 at 115200 baud and cause the HAL to stop at a breakpoint in the beginning of its initialization. The /break makes it easy to activate the verbose debug tracing to aid in finding the problem. Note that if you are modifying the txtsetup.sif file for Windows Server 2003 you could instead modify the line starting with SetupDebugOptions=. This line in the file contains the options invoked when the F8 key is pressed during setup. Changing this, if you are building a custom CD-ROM will allow you to optionally use the F8 debugger control but use different debug options. Now that you know how to modify txtsetup.sif, you need to get the changes into the installation. There are two ways to do this: Winn32.exe installation or a custom CD-ROM.


[infuscomus]

@George King

do you have a new version of XP2ESD for me to try out?

I also want to try booting XP with 2008 kernel using winload again.

[Thor55]

5 hours ago, infuscomus said:

@Thor55

Using 192kb acpi.sys do you still get 0A BSOD?

Do you still get 0A BSOD using 192kb acpi.sys?

yes some acpi.sys older date with 192 kb acpi.sys appear bsod exception is this latest acpi 6666 - 2021.8.28 - daniel_k, diderius6 both authors wrote corrections well which is true but unfortunately still Bsod with IRQL NOT LESS OR EQUAL

[infuscomus]

@Thor55

switch back to acpi 5048 for a sec, post a screenshot of the A5 BSOD you get.

[Thor55]

39 minutes ago, infuscomus said:

@Thor55

switch back to acpi 5048 for a sec, post a screenshot of the A5 BSOD you get.

please answer only this is still bsod
acpi 5048 - 2020.10.24 - daniel_k, diderius6 file is 234 kb long i think it will never work that way but i'm not sure the acpi.sys size is wrong it might be 192kb correct i tried everything in the folder after kind all are bsod

[infuscomus]

@Thor55

It is unfortunate that you have such troublesome hardware. Sorry the existing patches do not work for you.

@Mov AX, 0xDEAD @Dietmar

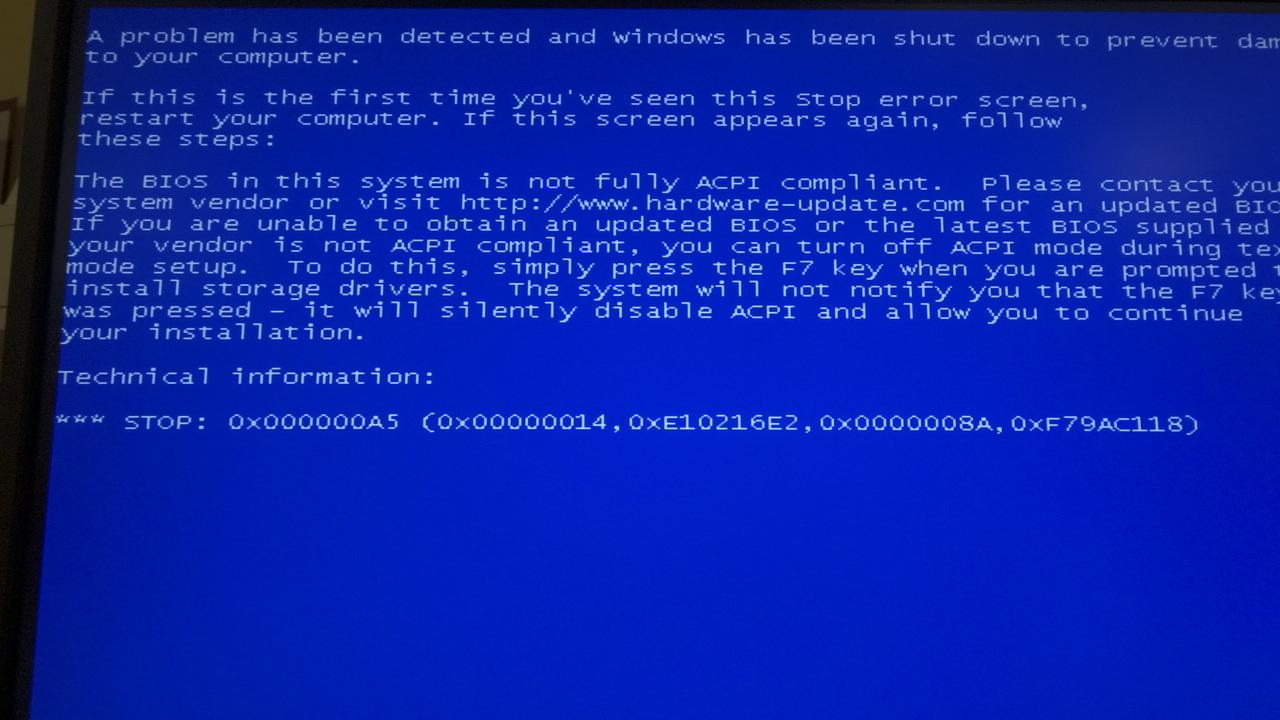

BSOD A5 0x14 - ACPI could not parse the resource descriptor. The length exceeds MAXULONG.

This one is unusual, thoughts?

[Thor55]

14 minutes ago, infuscomus said:

@Thor55

It is unfortunate that you have such troublesome hardware. Sorry the existing patches do not work for you.

@Mov AX, 0xDEAD @Dietmar

BSOD A5 0x14 - ACPI could not parse the resource descriptor. The length exceeds MAXULONG.

This one is unusual, thoughts?

It is unfortunate that you have such troublesome hardware. Sorry the existing patches do not work for you.

@Mov AX, 0xDEAD @Dietmar

BSOD A5 0x14 - ACPI could not parse source descriptor. Length exceeds MAXULONG.

let me wait for the next fixes when the authors try this asus prime x299 deluxe II board to make the acpi work for future installation each board i don't know if it has anything different acpi in bios acpi generation are set for processor generation settings in bios and more

[canonkong]

@infuscomus

I found a new way to solve the win8 porting usb driver problem.
Do not to install any AMD or Nvidia HDMI Sound driver.
Then it will be working well.



[infuscomus]

@canonkong

Not for me unfortunately, I have the exact same USB problem in XP textmode setup where no HDMI sound driver is present.

If @daniel_k is correct and it's an ACPI problem (I think he is correct) then solving this is issue unlikely without an ACPI driver patch.

[canonkong]

@infuscomus

I found that test/save mode will work well if I don't install the HDMI sound driver.

If install the HDMI sound driver，it will freeze any sysetm mode.

So I think maybe something wrong about its regedit.

[infuscomus]

@canonkong

My GT 710 has no option for HDMI sound.

[infuscomus]

@George King

Is there a guide for your XP2ESD? I'm not sure how to run it.

[infuscomus]

@George King

I'm still confused.

[ExtremeGrief]

2 hours ago, infuscomus said:

@George King

I'm still confused.

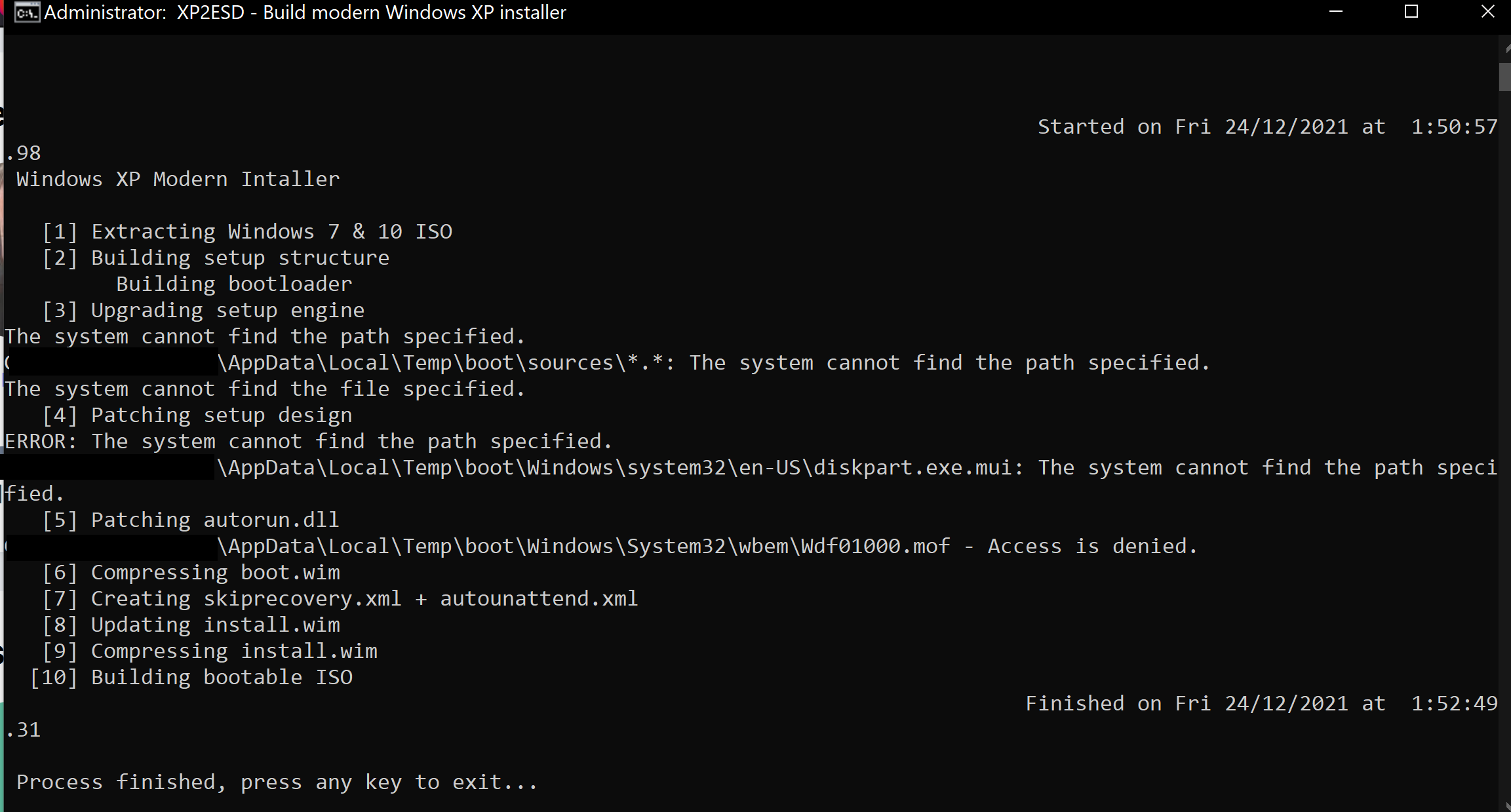

Your image is corrupted, remove folders with _ in XP2ESD folder and clear temp and %temp%

[infuscomus]

@ExtremeGrief

OK, I'll do that.

P.S Is there a guide I can use out there somewhere? I'm not even sure I'm doing everything in the right order, I'm just guessing.

[infuscomus]

@George King @ExtremeGrief

grr!

I can't delete the temp files! even when I run as admin! damnit!

how do I get rid of them now?

[ExtremeGrief]

1 hour ago, infuscomus said:

@George King @ExtremeGrief

grr!

I can't delete the temp files! even when I run as admin! damnit!

how do I get rid of them now?

Use takeown and icacls to give yourself permissions, or use Unlocker app

[ExtremeGrief]

1 hour ago, infuscomus said:

@George King @ExtremeGrief

grr!

I can't delete the temp files! even when I run as admin! damnit!

how do I get rid of them now?

https://youtu.be/PxHBRUKaZmM

[Andalu]

On 12/22/2021 at 3:54 PM, infuscomus said:

I've uploaded my experimental XP with server 2008 for anyone curious to test it.

https://ufile.io/kjlbndil

Tried it on a real machine with the same result: the system hangs on the "Setup is Starting Windows" screen.
